CP022.
Portable WiFi, has WiFi anywhere
| Item | Description | |
| Basic Information | Model Name | CP 710 |
| Size | 170x155x25mm | |
| Color | white | |
| Technical Standard | LTE FDD-TDD | 3GPP Release9，Category 4,up to 150M DL and 50M bps UL@20MHz bandwidth |
| HSPA+ | 3GPP Release7, up to 21Mbps DL,category 14; 5.76Mbps UL,category 6 | |
| HSPA | 3GPP Release6, up to 7.2Mbps DL,category 7/8; 5.76Mbps UL,category 6 | |
| UMTS | 3GPP Release4, up to 384Kbps DL and UL | |
| EDGE | 3GPP Release4, up to 237Kbps DL and 118Kbps UL | |
| GPRS | 3GPP Release4, up to 85.6Kbps DL and 42.8Kbps UL | |
Frequency Band (Customized upon requested) | LTE | LTE FDD B2, B4, B5, B7,B20, B28 Other frequency can be customized |
| 3G | WCDMA 850/900/1900/2100MHz | |
| 2G | Quad Band | |
| WIFI | Frequency | 2.4G |
| WIFI | 802.11 /b/g/n | |
| Hardware | BB Chipset | Qualcomm MDM9207 |
| RF Chipset | Qualcomm WTR2965 | |
| Memory | 4G+2G | |
| Power Consumption | <12W | |
| Power Voltage | 12V 1A | |

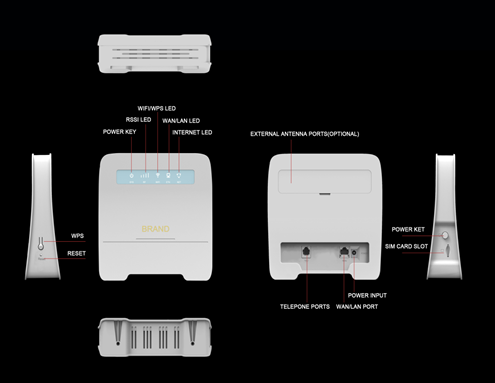

| LED | Power Indication LED, WAN signal strength, WIFI/WPS indication LED, WAN/LAN Status LED, Internet Status LED | |
| USB | USB 2.0 | |
| Antenna | Internal Antenna only | |
| Buttons | Power, reset, WPS | |
| Ethernet | 1 WAN/LAN | |
| RJ11 | RJ11 x1 with VOLTE | |
| Battery | Not Support | |
| Software | SW Upgrade | TR069 & Local upgrade |
| WIFI Mode | AP mode only, AP+ STA is optional | |
| WIFI Security | OPEN&WPA-PSK&WPA2-PSK&WPA-PSK/WPA2-PSK | |
| Voice | VOLTE & CS Domain Voice | |
| Firewall | MAC IP Address filter, port forwarding,WIFI Black&white list | |
| DATA statistics | Supported | |
| VPN Pass through | Support PP2P/L2TP/IPSec | |
| SIM Lock | Supported | |
| WAN Fallback to ETH | Manuelly | |
| HTTP | Supported | |
| Environment | Operating Temperature | -10°C to 65°C |
| Storage Temperature | -20°C to 85°C | |
| Humidity | 5%-95% | |
